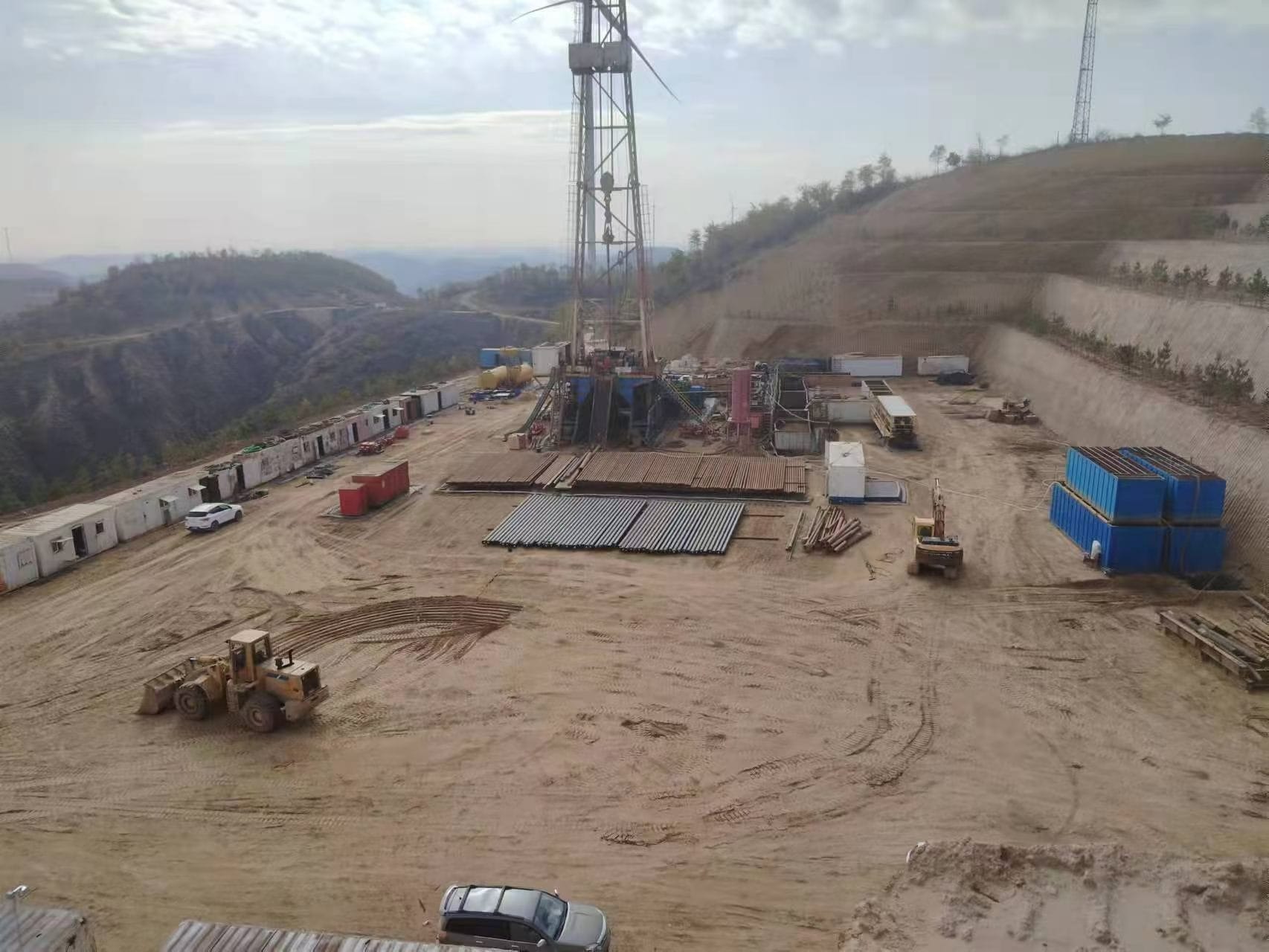

Used ZJ50 5000m electric land drilling rig package at drilling site

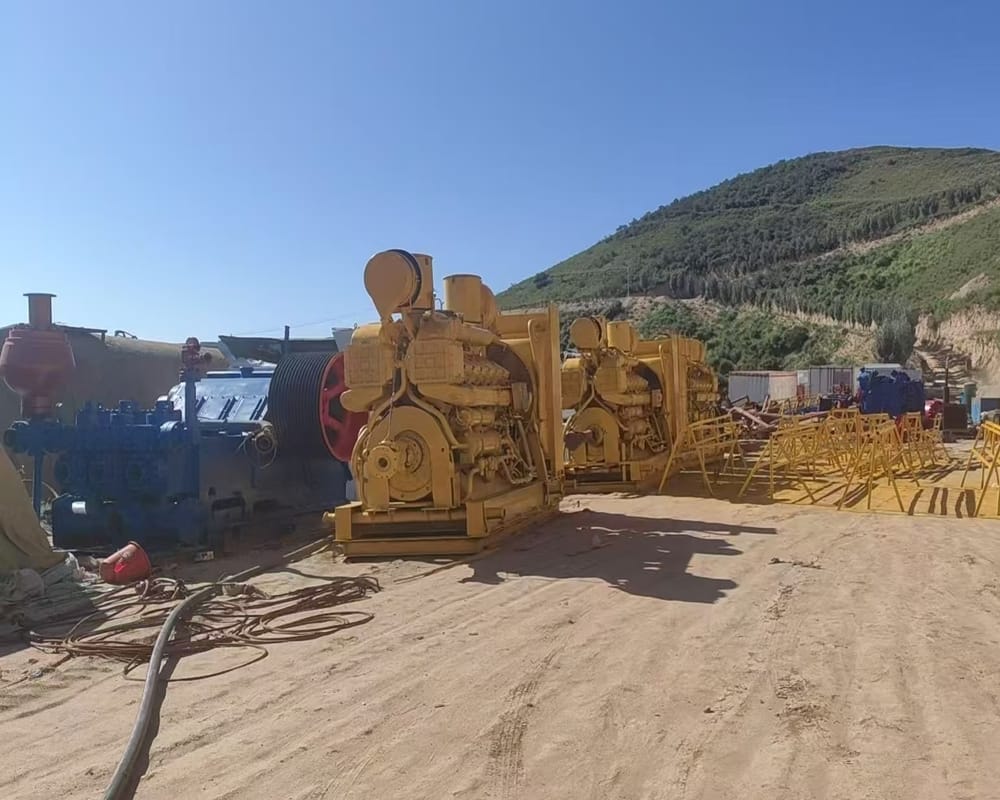

ZJ50 drilling rig drawworks and power equipment

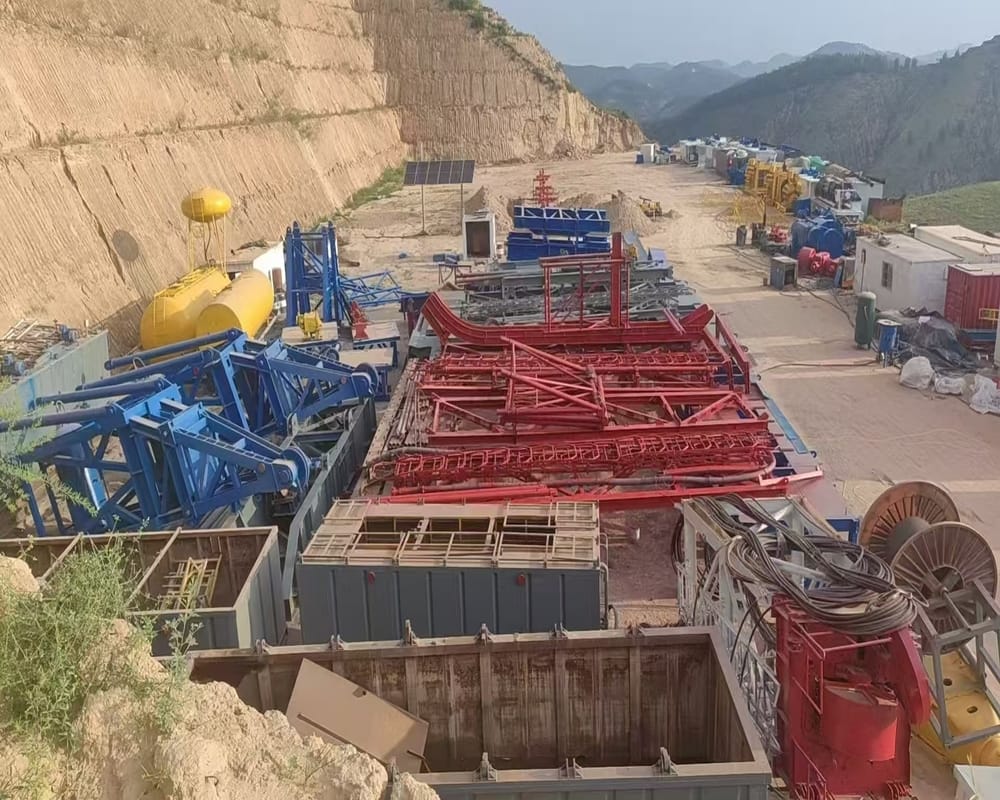

Complete ZJ50 land drilling rig equipment package

ZJ50 5000m Electric Land Drilling Rig Package

这款ZJ50型陆地电动钻机套装专为最大钻井深度5000米的油气钻井项目而设计。该套装包括主要钻台设备、桅杆及底座、提升系统、发电系统、电力驱动及控制系统、泥浆泵系统、固控设备、井控设备、营地设施、辅助系统和钻具。

该钻机配备JC50绞车、JJ315/45-K型钻杆、DZ315/7.5-K型底座、CAT 3512型发电机组、F-1600型泥浆泵、ZN-ZJ5000-ELC型变频控制系统、转盘、天车、行走滑车、吊钩、旋转接头及相关钻井附件。对于寻求起重能力强、泥浆循环性能可靠且配套系统完善的二手钻机整套设备的客户而言，该钻机是理想之选。

我们可以根据买方的项目要求，提供设备检验、技术审查、拆卸协调、出口包装、运输安排和安装指导等服务。

Additional information

Rig Model	ZJ50 Electric Land Drilling Rig Package
Nominal Drilling Depth	5000 m
Application	Onshore oil & gas drilling
Mast	JJ315/45-K Mast, 3150 kN
Substructure	DZ315/7.5-K Substructure, 3150 kN

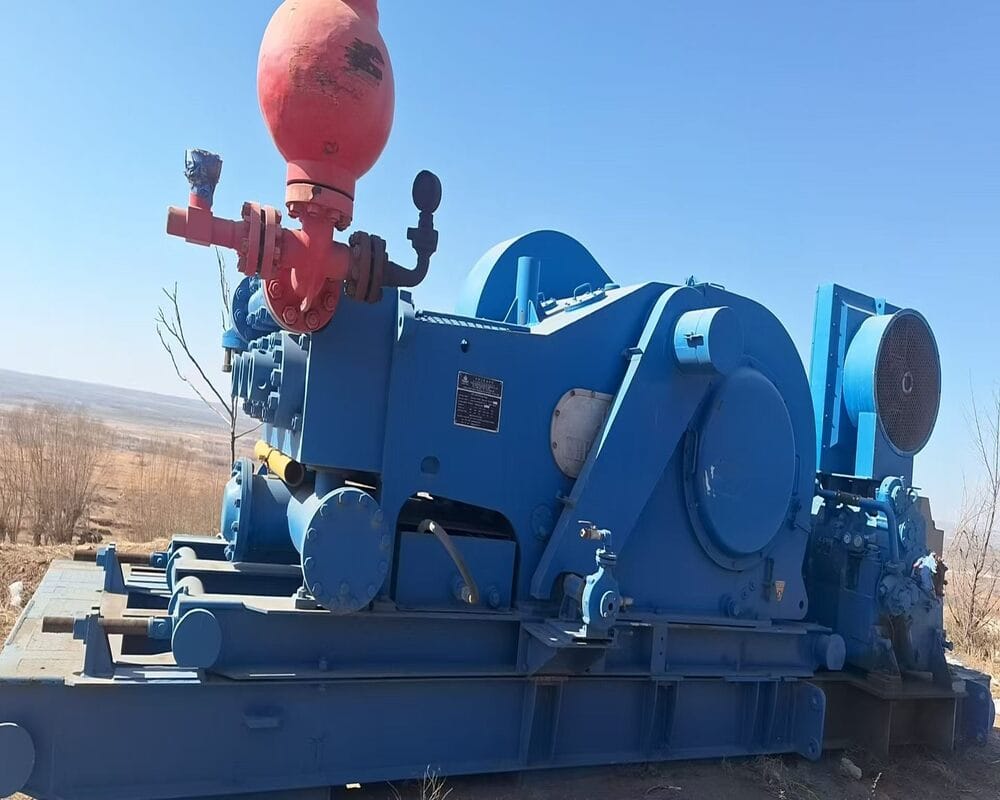

Mud Pumps	2 × F-1600 Mud Pumps, 1180 kW each
Power & Control System	3 × CAT 3512 Generator Sets, ZN-ZJ5000-ELC VFD Control System, 3000 kW

Scope of Supply

钻台设备：滑车、行走滑车、吊钩、旋转装置、转盘、绞车、电磁制动器、液压盘式制动器、机械传动系统及相关钻台附件。
桅杆和底座： JJ315/45-K 桅杆，DZ315/7.5-K 底座及相关结构部件。
电力系统： 3套CAT 3512发电机组、辅助发电机组、发电机房、配电室及相关电气设备。
电动驱动及控制系统： ZN-ZJ5000-ELC VFD 控制系统、控制柜、MCC 单元、钻井控制室、电缆及相关控制组件。
泥浆泵系统： 2 套 F-1600 型泥浆泵、泥浆泵电机、高压歧管、泥浆罐及相关循环管道。
固控系统：泥浆罐、振动筛、脱气机、除砂机、除泥机、离心机、砂泵、混合料斗、搅拌器和泥浆枪。
井控设备：环形防喷器、双闸板防喷器、防喷器控制单元、钻井短节、节流歧管、压井歧管、防喷管线及相关井控工具。
营地及公用设施：钻井控制室、值班室、材料室、泥浆实验室、水箱、燃料箱、空气压缩机、消防工具室及其他配套设施。
钻井工具和顶驱：钻杆、500吨顶驱、导轨、升降机、吊索及相关钻井工具。

Inspection, Testing & Technical Review

Mechanical Inspection: review of mast, substructure, drawworks, rotary table, crown block, traveling block, hook, swivel and drilling floor equipment.
Power System Review: inspection of CAT 3512 generator sets, auxiliary generator set, generator rooms, power distribution room, cables and related power systems.
Electric Drive Review: verification of VFD control system, control cabinets, MCC units, drilling control room and related electrical components.
Mud Pump & Circulation Review: inspection of F-1600 mud pumps, mud tanks, high-pressure manifold, valves, hoses, pipelines and solids control equipment.
Well Control Equipment Review: checking of BOP stack, BOP control unit, choke manifold, kill manifold, pressure rating and related control lines.
Top Drive Review: inspection and overhaul arrangement for the 500-ton top drive can be discussed before shipment.
Pre-Delivery Verification: equipment list confirmation, photo/video inspection, component matching and export loading plan review before shipment.

Project Support Services

Complete Rig Package Matching: We help buyers review whether this ZJ50 rig configuration matches the target drilling depth, well program, power requirements and site conditions.
Technical Communication: Our team can support technical discussions on mast/substructure, hoisting system, mud circulation, VFD control system, well control equipment and top drive configuration.
Dismantling & Loading Coordination: We can assist with dismantling planning, equipment marking, packing, loading sequence and transport coordination.
Export Documentation & Logistics: Export documents, packing list, loading plan and international shipping support can be arranged according to buyer requirements.
Installation & Commissioning Guidance: Technical guidance for site installation, system connection and commissioning can be discussed based

Frequently Asked Questions

Can this ZJ50 drilling rig be supplied as a complete package?

Yes. The package can include the main drilling rig equipment, mast and substructure, power system, VFD electric drive system, mud pump system, solids control system, well control equipment, camp facilities, auxiliary systems, top drive and drill tools.

What is the maximum drilling depth of this rig?

The maximum drilling depth is 5000 meters. Buyers should also confirm the target well depth, drilling program, well structure and operating conditions before final technical matching.

Can you support inspection, refurbishment and export delivery?

Yes. We can support equipment inspection, technical review, refurbishment discussion, dismantling coordination, packing, loading and international shipping arrangement according to the buyer’s project requirements.

Request a Quote & Technical Matching

Please provide your contact details and project requirements below. Our team will review your request and recommend suitable equipment solutions based on your application, technical needs, and delivery destination.
Site inspection, pre-shipment checking, and project discussion can be arranged for serious buyers.
