| Generator Voltage | 10.5 kV / 50 Hz |
|---|---|
| ISO Power | 7,965 kW |
| Net Output Power | 7,679 kW |
| Thermal Efficiency | 33.58% |
| Heat Rate | 2,561 kcal/kw-hr |
1. Solar Core Engine System

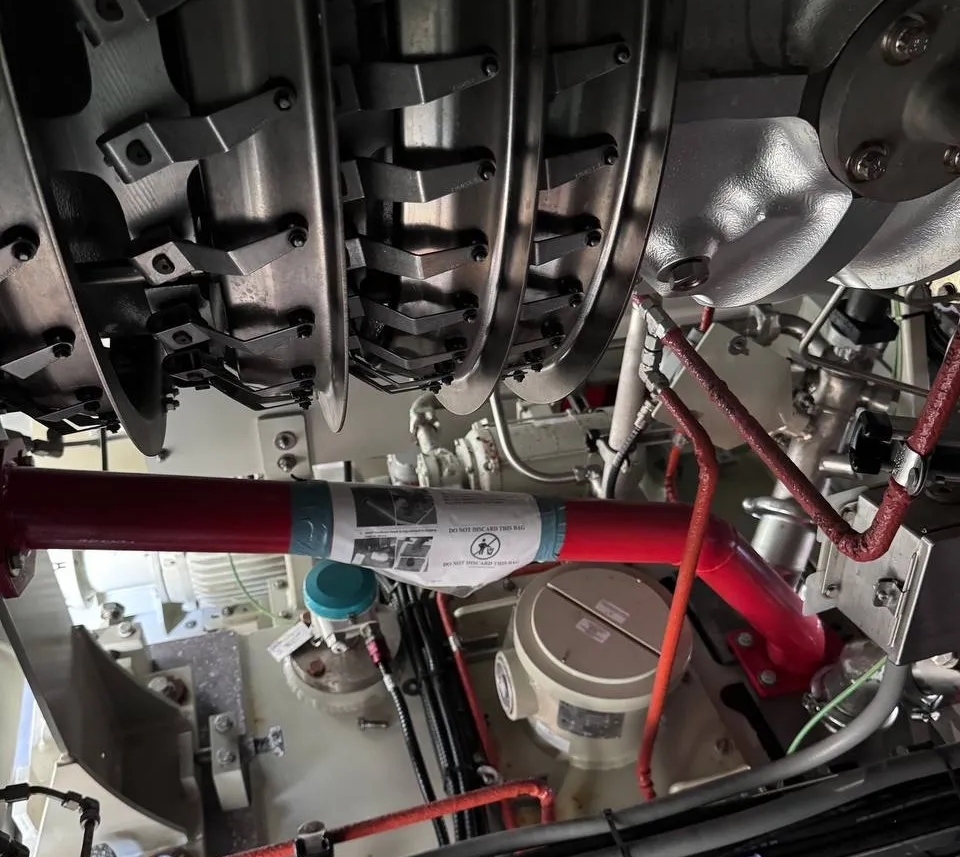

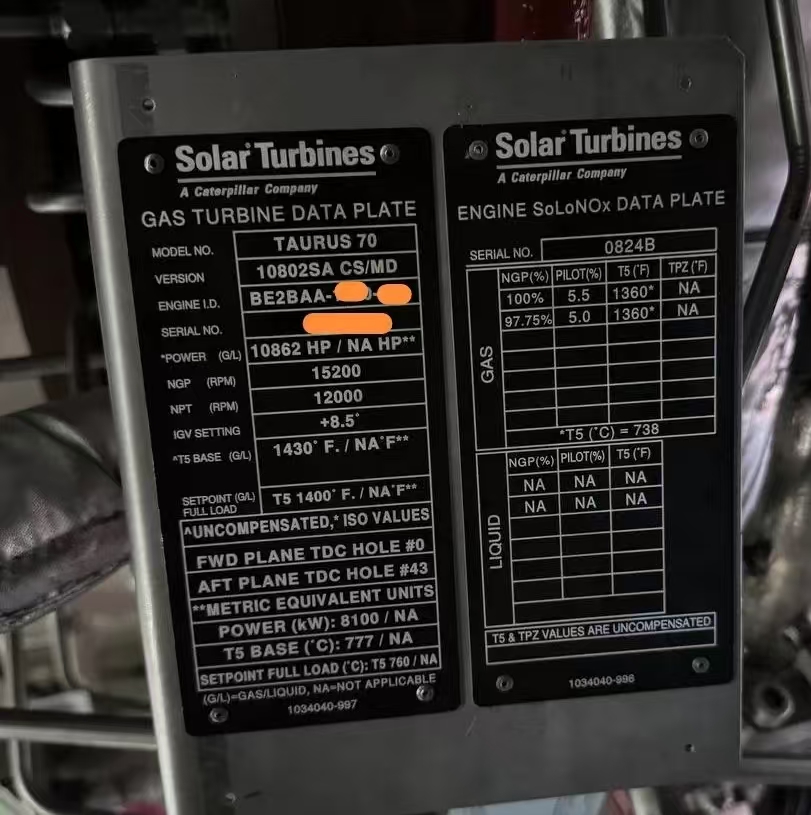

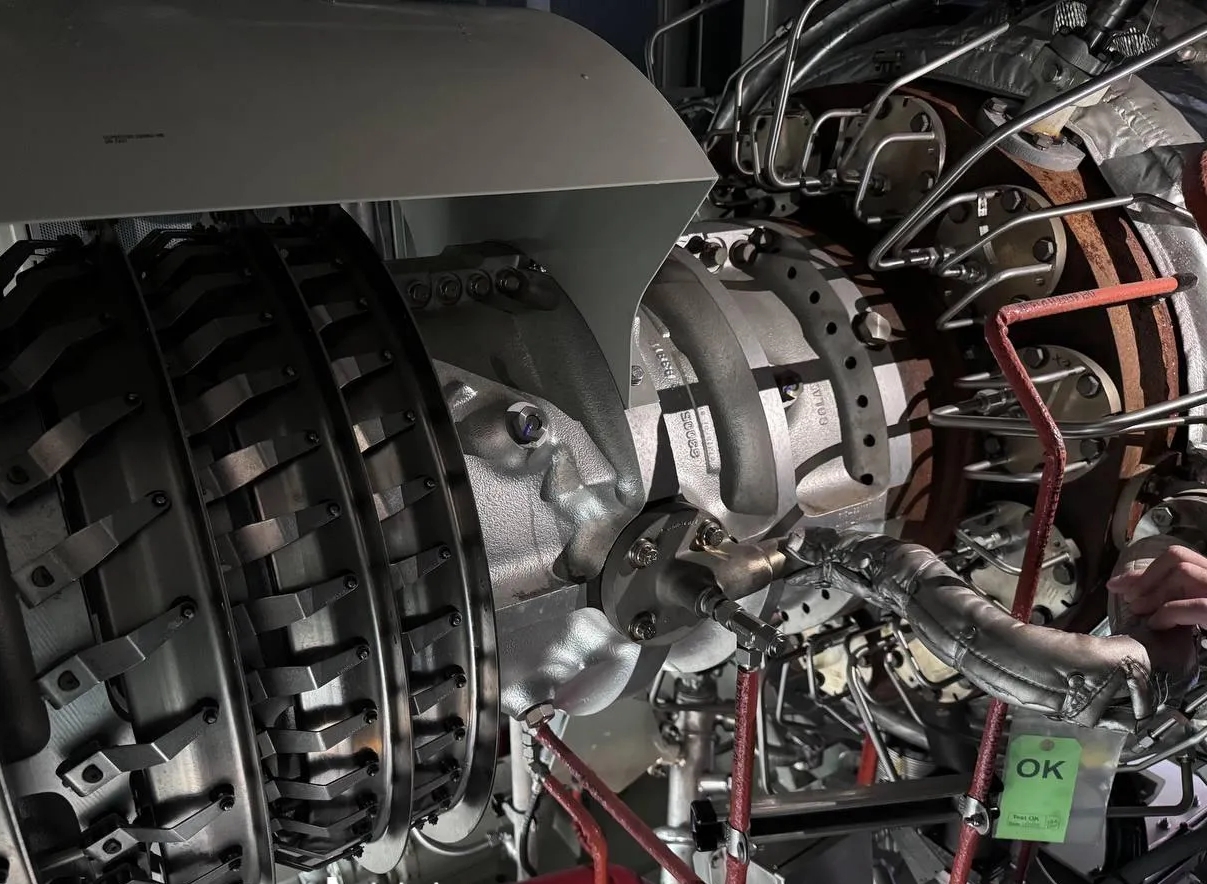

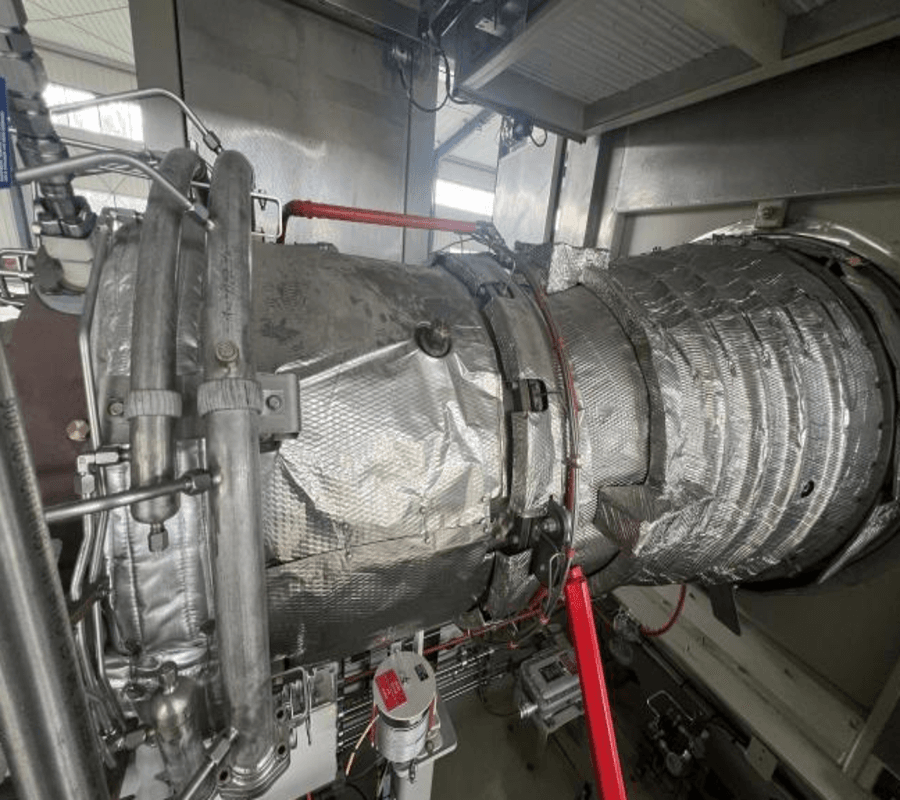

Gas Turbine Engine: Solar Taurus 70 with Dry Low Emissions (SoLoNOx) technology, including thermal insulation.
Reduction Gearbox: Rated at 12100 hp with a precision ratio of 10.09548.

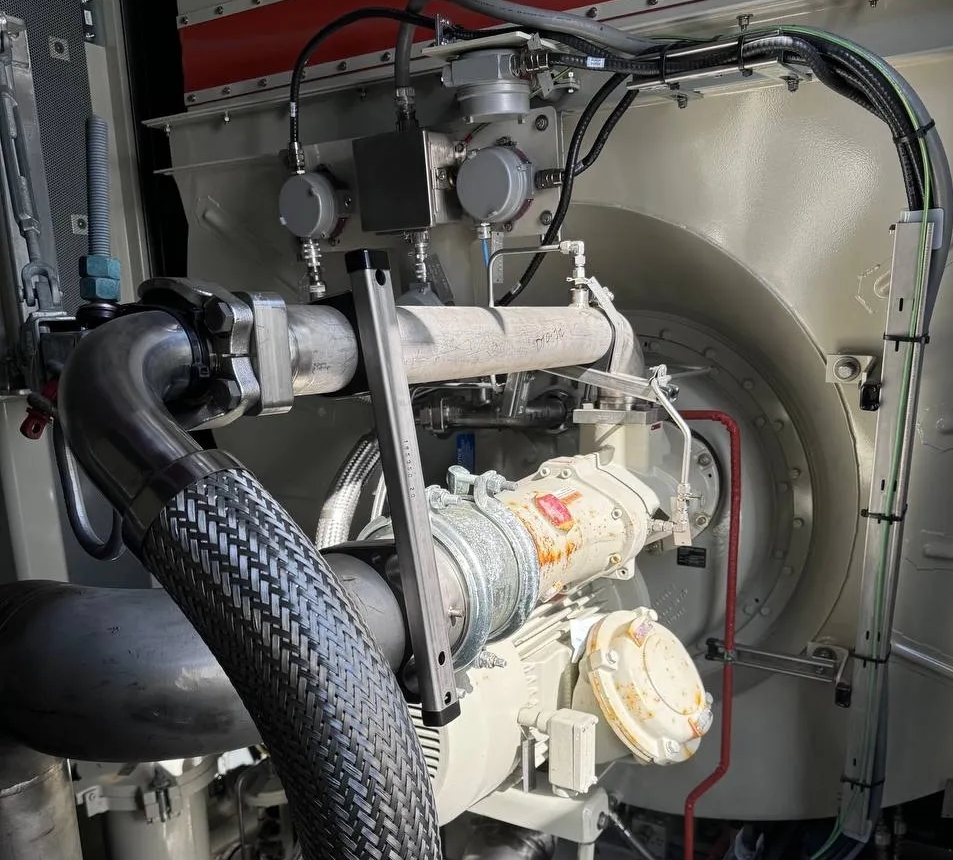

Core Auxiliary Modules: Includes direct-drive AC start motor, on-skid fuel system, and complete lubrication module (main/auxiliary pumps, filters, and tank heaters).
Control & Monitoring: On-skid display control and remote control system with bilingual (CN/EN) interface
2. Generator & Electrical System
Main Generator: 10.5kV, 50Hz high-voltage synchronous generator (manufactured by XEMC).
Electrical Engineering Center (EEC): Includes VFD start drive, AC/DC control cabinets, and a 120VDC backup battery system.
Control Terminal: Remote control PC station with standard communication protocols and data logging.
3. Ancillary Equipment

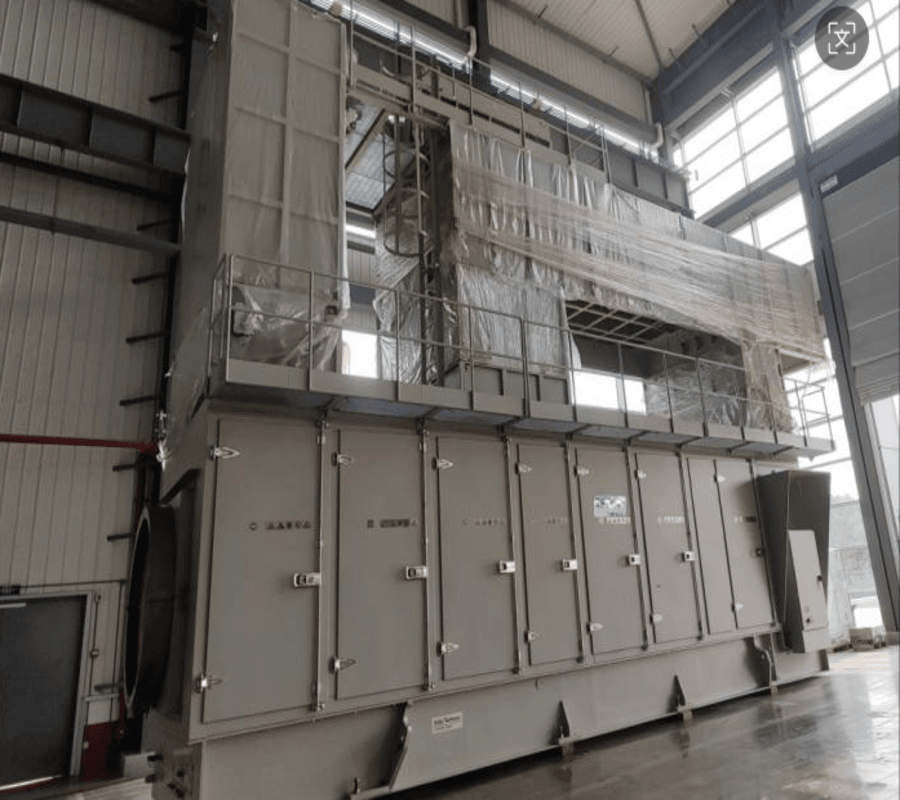

Inlet & Exhaust System: Features G4+E10 filtration, inlet silencers, and enclosure ventilation.

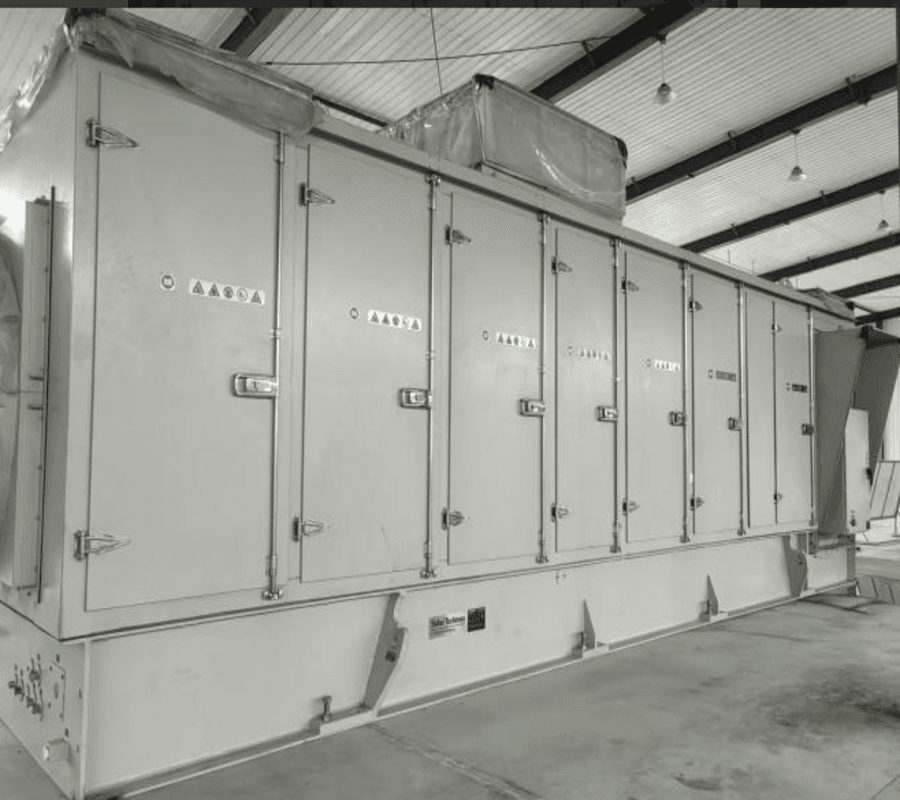

Safety & Protection: Acoustic enclosure equipped with an automated CO2 fire suppression system (including 5*42kg cylinder cabinet).
Maintenance Tools: Includes professional dismantling/assembly lifting tools, supports, and a turbine wash system.
