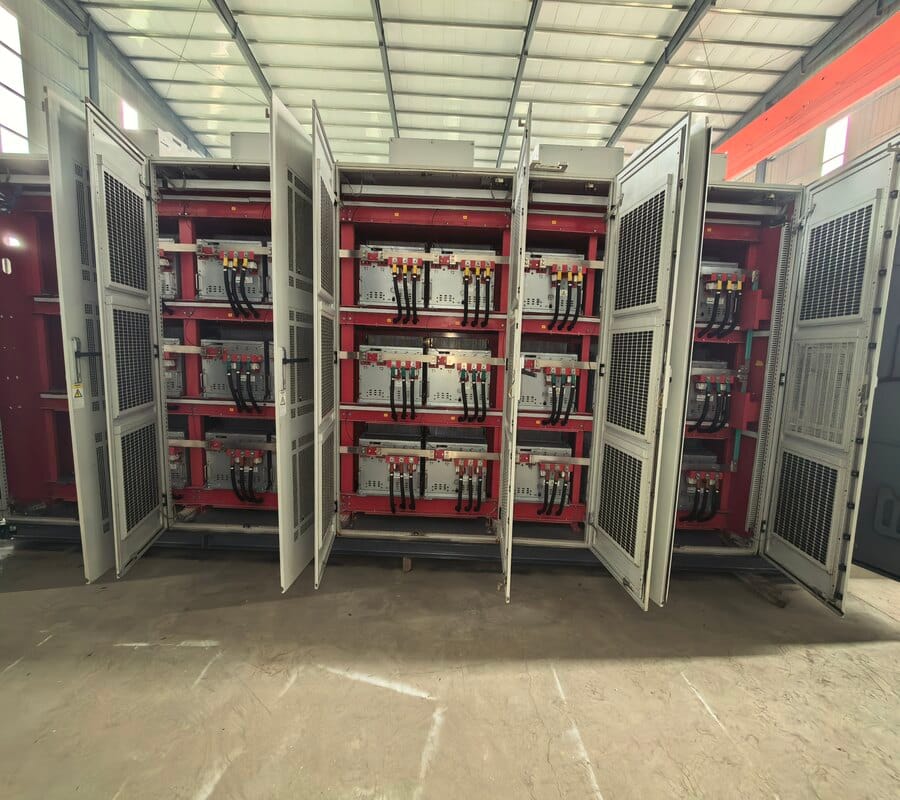

Internal cabinet view of INOVANCE HD92-J100-10000-DN high voltage inverter

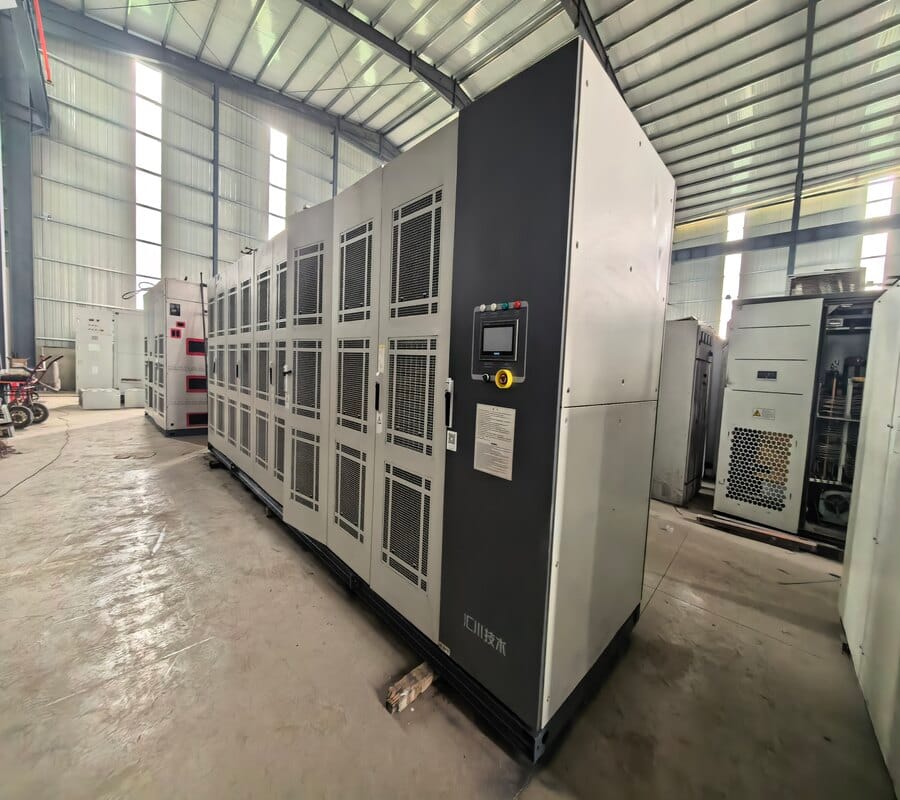

INOVANCE HD92-J100-10000-DN high voltage inverter side front view

INOVANCE HD92-J100/10000-DN High Voltage Inverter | 10kV | 8000kW

This INOVANCE HD9X series high voltage inverter is designed for 10kV motor applications and suitable for 8000kW motors. The product model is HD92-J100/10000-DN, with a rated inverter capacity of 10000kVA. This unit features 3-phase 10kV input, 3-phase 0–10kV output, output frequency range of 0–50Hz, input power factor above 0.95, IP30 protection grade and forced air cooling. It is suitable for heavy-duty industrial motor control applications requiring reliable speed regulation and stable operation. Technical review and pre-shipment inspection can be arranged based on project requirements.

Additional information

Brand

INOVANCE

Model

HD92-J100/10000-DN

Equipment Type

High Voltage Inverter

Rated Voltage

10 kV

Rated Motor Power

900kW

Rated Capacity

10000 kVA

Manufacture Date

2022-05

WhatsApp
Request a Quote

Scope of Supply

The INOVANCE HD92-J100/10000-DN high voltage inverter package can be supplied with the following scope, subject to final project confirmation:

  • INOVANCE HD9X series high voltage inverter main unit
  • Main inverter cabinet and control section
  • Power module assembly and internal electrical components
  • Ventilation and forced air cooling structure
  • Local operation interface and control panel
  • Protection, alarm and emergency stop functions
  • Internal control wiring and power connections
  • Nameplate and available technical documents for review
  • Optional spare parts and recommended maintenance items can be discussed separately

Inspection, Testing & Technical Review

Technical review and inspection can be arranged before delivery according to buyer requirements and project conditions.

  • Visual inspection of cabinet structure and internal layout
  • Nameplate verification and basic technical data confirmation
  • Review of voltage, motor power and application matching
  • Internal cabinet photos can be provided for buyer review
  • Pre-shipment checking can be arranged based on agreed procedures
  • Additional testing scope can be discussed separately if required
  • Suitable for industrial replacement, retrofit and heavy-duty motor control projects

Project Support Services

We can provide project support for high voltage motor drive selection, technical communication and export coordination for overseas industrial applications.

  • Technical communication for 10kV motor drive applications
  • Application support for heavy-duty industrial motor control projects
  • Assistance with replacement and retrofit project matching
  • Export packing and international shipment coordination
  • Spare parts and after-sales support discussion if required
  • Support for installation and commissioning planning based on project needs
  • Technical review support for industrial fan, pump and compressor duty

Frequently Asked Questions

What motor applications is this INOVANCE high voltage inverter suitable for?
This unit is suitable for 10kV motor applications in heavy-duty industrial projects, including fans, pumps, compressors and other equipment requiring reliable variable speed control.

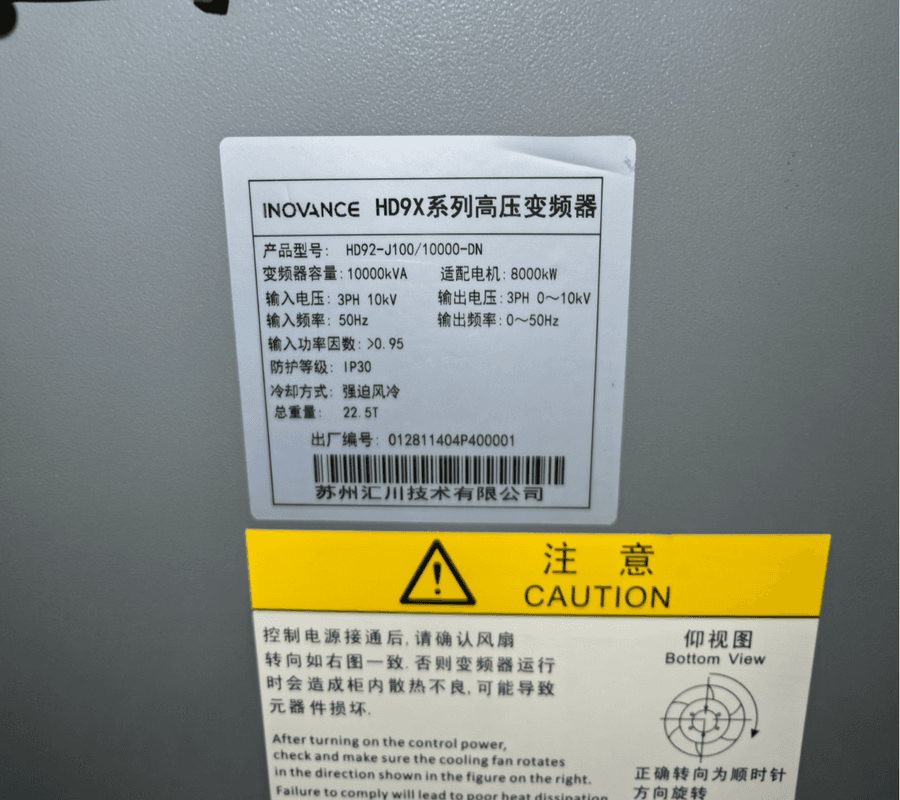

The main ratings shown on the nameplate include 10000kVA inverter capacity, 8000kW suitable motor power, 3-phase 10kV input voltage, 3-phase 0–10kV output voltage, 50Hz input frequency, 0–50Hz output frequency, input power factor above 0.95, IP30 protection grade and forced air cooling.
Yes. Technical review, basic inspection and pre-shipment checking can be arranged based on project requirements and buyer confirmation.
