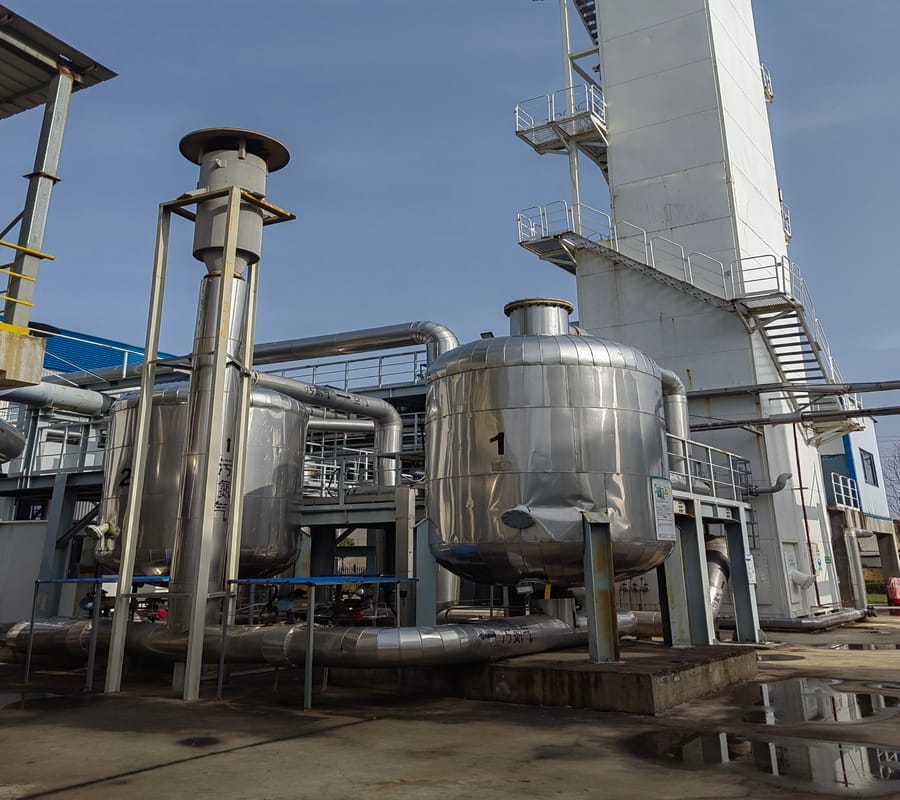

100 TPD liquid oxygen plant with liquid oxygen and liquid nitrogen storage tanks

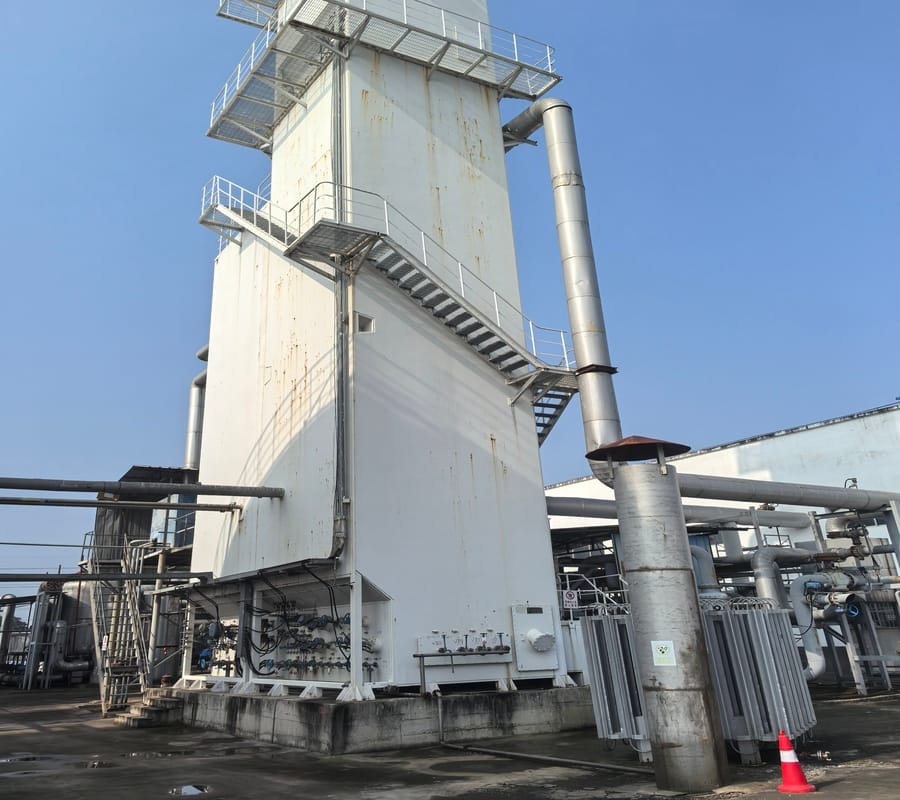

Air separation unit tower and process system for liquid oxygen plant

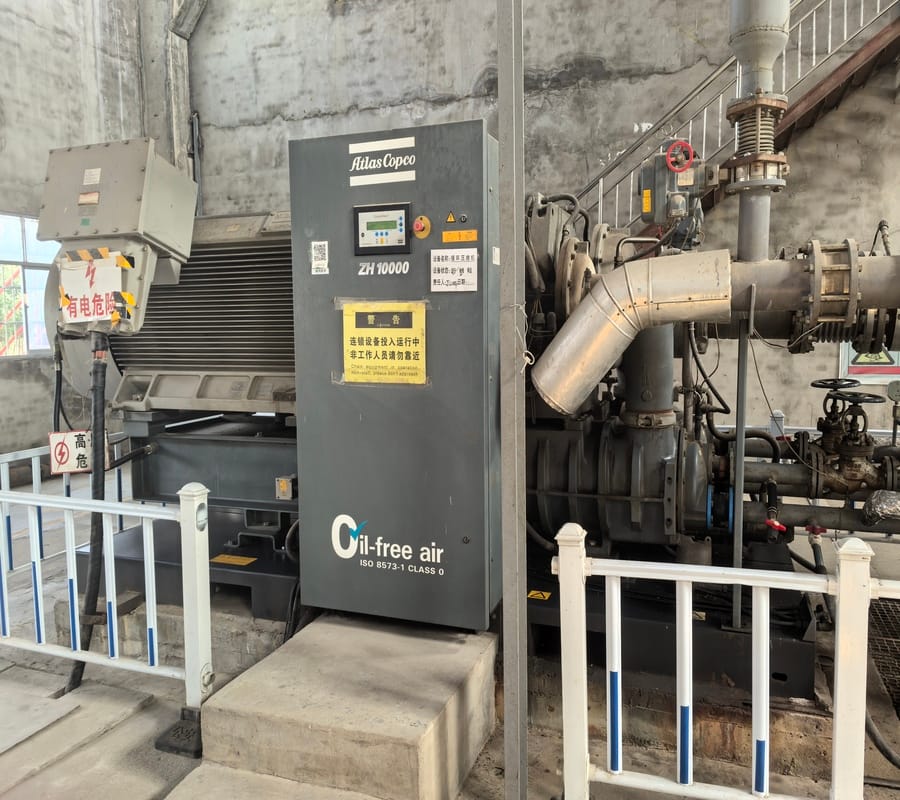

Atlas Copco oil-free air compressor for air separation unit system
Cryogenic tanks and process piping for 100 TPD liquid oxygen plant

Used 100 TPD Cryogenic Air Separation Plant for LOX, LIN and LAr Production

This 100 TPD cryogenic air separation plant is available for liquid oxygen, liquid nitrogen, and liquid argon production. The plant capacity is approximately 100 TPD LOX, 45 TPD LIN, and 4 TPD LAr, making it suitable for industrial gas supply, steel plants, chemical plants, and other oxygen / nitrogen applications.The unit can be inspected in China. Technical review, refurbishment, dismantling, export packing, relocation, and commissioning support can be arranged according to project requirements.

Additional information

Model

KDON(Ar)-3000Y/1500Y/90Y

Liquid Oxygen Capacity

approx. 100 TPD

Liquid Nitrogen Capacity

approx. 45 TPD

Liquid Argon Capacity

approx. 4 TPD

Year of Manufacture

2018

WhatsApp
Request a Quote

Scope of Supply



  • Air filtration and air compression system
  • Air pre-cooling and molecular sieve purification system
  • Double-column rectification cold box system
  • Main heat exchanger, main condenser-evaporator, and subcooler
  • Crude argon column, pure argon column, and related argon production system
  • High-temperature and low-temperature turbo expander system
  • Process piping, valves, instruments, and related accessories within battery limits
  • New high-voltage and low-voltage control cabinets, oxygen analyzer cabinets, and related electrical control panels can be provided based on project requirements
  • Optimization and supporting solutions for electrical, instrumentation, and auxiliary systems can be provided according to project conditions

Inspection, Testing & Technical Review

  • Technical evaluation of the existing plant and confirmation of the refurbishment scope based on project requirements
  • Inspection, cleaning, repair, or necessary replacement of major systems including cold box, columns, heat exchangers, valves, expanders, molecular sieve system, and key process equipment
  • New design and replacement solutions can be provided for outdated or unsuitable HV/LV control cabinets, oxygen analyzer cabinets, and selected instrumentation systems
  • Inspection, arrangement, and necessary upgrading of process piping, valves, instruments, cables, and related accessories
  • Technical review and matching of plant configuration, supply scope, and installation conditions according to project objectives

Project Support Services

  • Technical communication and project matching
  • Equipment configuration optimization based on project conditions
  • New design and supply support for HV/LV control cabinets, oxygen analyzer cabinets, and related supporting systems
  • Installation, commissioning, and start-up support
  • Site condition review, battery limit definition, and supply scope confirmation support
  • Export packing, shipment coordination, and documentation support
  • Ongoing technical communication and after-support for operation and maintenance

Frequently Asked Questions

Why This 100 TPD ASU Plant?
– Approx. 100 TPD LOX, 45 TPD LIN, and 4 TPD LAr capacity – Cryogenic ASU suitable for liquid oxygen, nitrogen, and argon production – Suitable for industrial gas supply, steel plants, chemical plants, and metallurgy projects – Available for inspection in China – Technical review and refurbishment can be arranged – Dismantling, export packing, relocation, and commissioning support available
Depending on the project, we can provide inspection, cleaning, repair, replacement, control system optimization, and new configuration of selected key supporting systems such as HV/LV control cabinets and oxygen analyzer cabinets.
Yes. Our professional team can provide design communication, installation support, commissioning assistance, and follow-up technical support according to the specific project conditions.

Request a Quote & Technical Matching

Please provide your contact details and project requirements below. Our team will review your request and recommend suitable equipment solutions based on your application, technical needs, and delivery destination.
Site inspection, pre-shipment checking, and project discussion can be arranged for serious buyers.
